For bamboo toothpick making machine, it is mainly consisted by the following equipment:

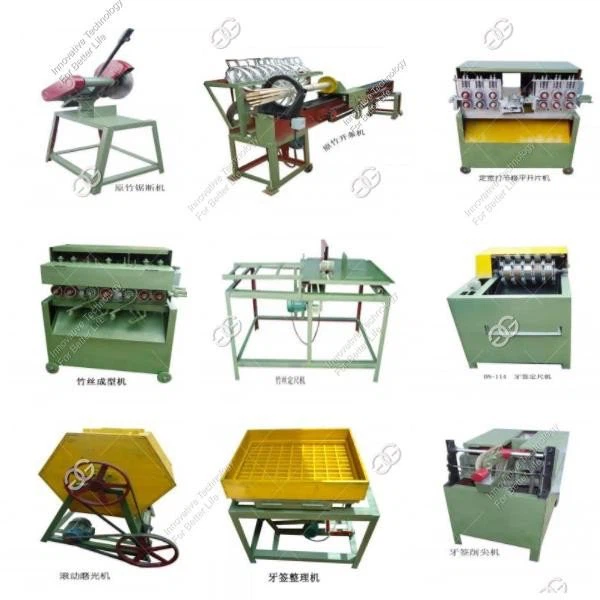

Machines of Bamboo Toothpick Production Line
1. Bamboo Sawing Machine: It is used to cut bamboo into certain length.
2. Bamboo Cutting Machine: This machine is used to split the bamboo into strips.
3. Fixed Width Slicer: Used for width and thickness setting and knot removing, separating green layer from yellow layer, ensures the surface quality of processed material.
4. Bamboo Stick Shaping Machine: This machine is used for making thick bamboo strip into thinner one.
5. Bamboo Stick Size Setting Machine: Special equipment for bamboo stick or wood stick fixed size cutting, especially for round stick size set.
6. Bamboo Toothpick Cutting Machine: Length setting for bamboo toothpick
7. Toothpick Polishing Machine: It is to make the surface of toothpicks more smooth.
8. Toothpick Finishing Machine: Dedicated equipment for tidying toothpicks. Through vibration, tidy the irregular toothpicks to achieve the effect of packaging.
9. Toothpick Sharpening Machine: Used for sharpening bamboo toothpicks.
10. Blade Sharpening Machine: Used for blade grinding.
Our factory specializes in manufacturing series mechanical facilities of bamboo-wood products, having sold everywhere at home and also far-sold into many foreign countries such as Africa, Europe, Southeast Asia, etc, has won national Stable and Qualified Products and Stressing Quality, Sincere Enterprise and so on, moreover, the factory has applied to many national patents. Main products in our factory as follows Bamboo and wood toothpick machinery, incense stick machinery, Teppo Kushi Skewer machinery, bamboo and wood round chopsticks machinery, double-born bamboo chopsticks and double-unite wood chopsticks machinery, bamboo and wood craft chopsticks machinery, wood rounding machine, woode shaving machine and so on.
Focusing on Quality and keeping honesty and credit, which is the everlasting management tenet that GELGOOG persons strive for. Welcoming the customers to come for investigation and ordering at home or overseas.
Technical Parameter of Toothpick Processing Equipment
|
NO. |
Name |
Power |
Weight (kg) |
Size(mm) |
|
1 |
Bamboo sawing machine |
1.5 |
65 |
900*510*930 |
|
2 |
Bamboo dissection machine |
3.0 |
630 |
3000*850*1200 |
|
3 |
Combined flaker |
3.7 |
450 |
1460*660*1000 |
|
4 |
Bamboo filament shaping machine |
9.1 |
450 |
1050*650*990 |
|
5 |
Bamboo filament set-size machine |
0.75 |
85 |
1500*650*990 |
|
6 |
Polishing machine |
1.5 |
120 |
1050*1050*1200 |
|
7 |
Toothpick set-size machine |
2.75 |
240 |
900*700*950 |
|
8 |
Toothpick finishing machine |
0.55 |
70 |
1050*900*850 |
|
9 |
Toothpick sharpened machine |
1.65 |
260 |
950*650*1050 |
|
10 |
Knife Sharpener |
0.55 |
50 |
370*330*720 |
