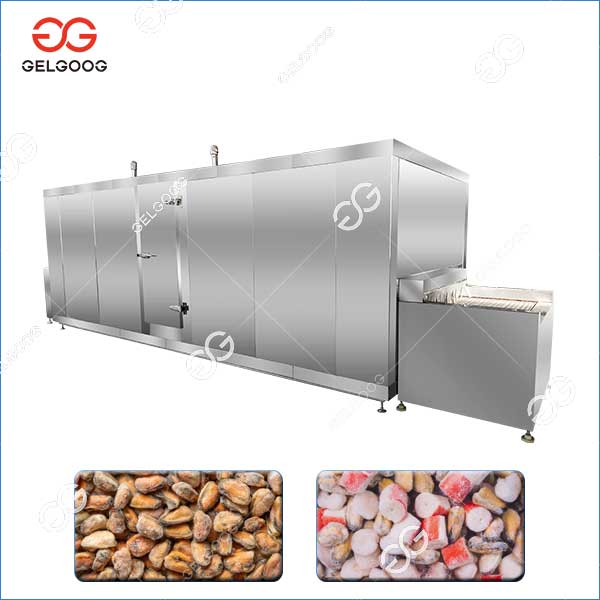

Fish Freezing Machine

This fish freezing machine is an efficient, energy-saving and multi-purpose quick-freezing equipment. The machine has the advantages of energy saving and stable performance.

Description

The fish freezing machine can play a very good role in preservation. When using the tunnel freezer, the temperature can be well controlled without changing the taste of the fish. In addition, the temperature of the quick freezer is adjustable, which is suitable for freezing products with different temperature requirements.



The fish freezing machine provided by our company is also called a tunnel freezer, and the application of this machine is more and more extensive. This device has the following advantages:


1. The quick freezer saves factory space and has a long service life.

2. Realize rapid freezing, shorten the time to market products, and do not need to store a large number of products.

3. Effectively reduce water loss without reducing weight.

4. Maintain the freshness of the original products, and improve product quality, and yield.

5. Installation cost and maintenance costs are relatively low.

6. Longer shelf life, to solve the problems of excess production, expiration, deterioration, and so on.


Operation Points of Fish Freezing Machine


1. Check before starting


Check the parts of the machine before working to ensure that each part is undamaged and functioning properly.


2. Operation after power on


After starting work, pay attention to the operation between the various parts of the machine. If any abnormality is found, it should be shut down for repair.


3. Special circumstances


In case of emergency, press the "Emergency Stop" button.


Technical Parameter




ModelsCapacityRefrigeration PowerSize(L*W*H)Installed PowerFeed TemperatureDischarge TemperatureCirculating TemepratureFreezing TimeRefrigerants
IQF-100100KG/H20KW5500*3400*2900MM14KW+15℃-18℃-35±2℃8~20MinCustomized
IQF-200200KG/H36KW5500*3400*2900MM21KW+15℃-18℃-35±2℃8~20MinCustomized
IQF-300300KG/H54KW6000*4000*3700MM18KW+15℃-18℃-35±2℃8~20MinCustomized
IQF-400400KG/H72KW8000*3700*3600MM21KW+15℃-18℃-35±2℃8~20MinCustomized
IQF-500500KG/H90KW8000*4000*3700MM24KW+15℃-18℃-35±2℃8~20MinCustomized
IQF-10001000KG/H180KW10500*4200*3500MM35KW+15℃-18℃-35±2℃8~20MinCustomized
IQF-20002000KG/H340KW15000*4700*3600MM50KW+15℃-18℃-35±2℃8~20MinCustomized
IQF-30003000KG/H540KW18000*4300*3700MM66KW+15℃-18℃-35±2℃8~20MinCustomized
