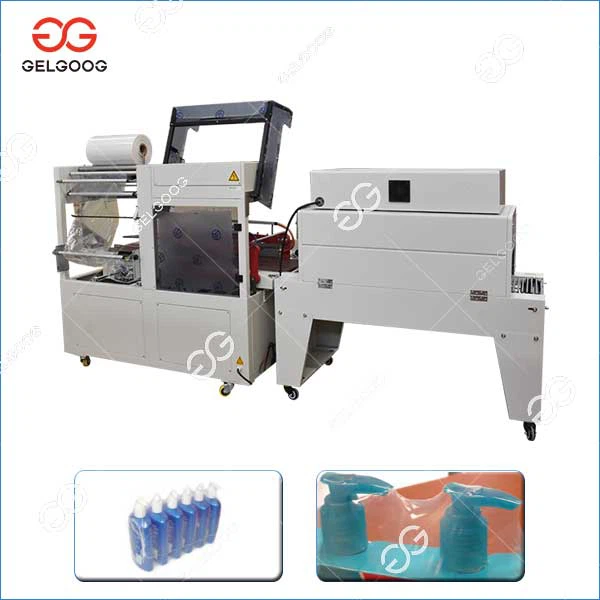

The shrink wrapping machine adopts photoelectricity to automatically detect products, realizes automatic unmanned packaging, has high work efficiency, and is suitable for products of various packaging types, sizes and shapes.
Heat Shrink Wrapping Machine Application:
It is suitable for heat shrink packaging in food, cosmetics, printing, pharmaceutical, ceramics, beverages, hardware and other industries.
Heat Shrink Wrapping Machine Features:
1. Fully enclosed packaging.
2. Automatic film feeding, bag making, sealing and cutting, waste collection, leveling, shrinking, and packaging finished products are completed at one time.
3. Constant temperature type super aluminum alloy sealing and cutting knife, anti-sticking, thin sealing line, no coking, no smoke, zero pollution.
4. The cutter will automatically rebound after cutting the package.
5. The size of the package can be adjusted arbitrarily without changing the mold.
6. The conveyor belts are all covered with PTFE heat insulation pipes, which are not hot to the touch and do not damage the film.
7. The shrinking chamber adopts a double-circulation hot air system, and the temperature can be adjusted arbitrarily.
8. The conveying motor adopts stepless variable speed motor, which has long service life and low noise.
Heat Shrink Wrapping Machine Structure:
Control panel: Using "Japan Omron" digital temperature controller to seal and cut the knife, the temperature control is extremely sensitive and precise, and can be set at will. There is no need to worry about inaccurate temperature damage to the product.
Sealing and cutting part: The sealing and cutting knife adopts DuPont Teflon coating, anti-sticking and high-temperature resistance integrated knife, the sealing will not crack, will not coking, no smoke, and zero pollution. The cutter also has an automatic anti-cutting protection function, which effectively prevents miscutting the package.
Photoelectric detection part: It adopts two sets of photoelectricity, up and down, left and right, and the light spot can be switched according to the different packaging parts.
Heat Shrink Wrapping Machine Data:
| Model | GG-FL450 |
| Power | 380V/50-60Hz/3phase |
| Packaging Speed | 15 - 35 packs/min |
| Size of l-type sealing cutter | 570x480 mm |
| Packing height | 150 mm |
| Package Size | Width + height< 400mm, Length + height < 480mm |
| Packing Materials | POF,PE, Folded film |
| Maximum Film | 530mm (width ) x 280mm（Outer diameter） |
| Furnace Size | 1200(L) x 450(W) x 220(H) mm |
| Total Power | 8.5 kW |
| Platform Height | 780-850 mm |
| Pressure | 0.5MPa (5 bar) |
| Dimensions | 1600 x 770 x 1450mm 1600 x 600 x 1260mm |
| Weight | 450kgs |
