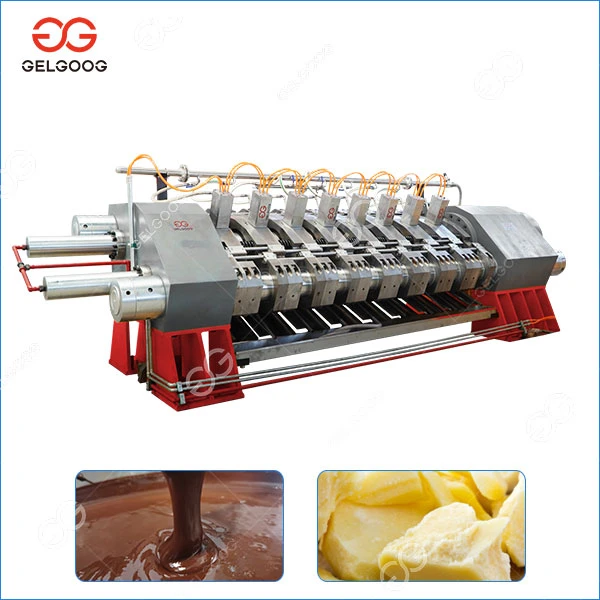

Automatic Cocoa Butter Extraction Machine

This cocoa butter extraction machine is specially designed based on global standards for cocoa liquor pressing. The feeding and pressing systems utilize independent horizontal pressing chambers, resulting in a high oil yield. This oil press is fully automatic, with minimal downtime, enabling continuous processing of cocoa and offering exceptional cost-effectiveness.

Automatic Cocoa Butter Extraction Press:
First, the cocoa liquor is rapidly heated and melted while being continuously stirred. Then, a high-capacity pump quickly pumps the cocoa liquor into the press. The characteristics of the liquid affect the operation of the press, so the pressing cycle can be flexibly adjusted.

During the pressing process, the cocoa oil is separated through a filter screen in the separator tank. The oil flows along the drip tray into the central oil channel and is collected in the discharge container. After pressing is complete, the press opens, and the cocoa cake is discharged via a cake conveyor.

Technical Advantages of the Automatic Cocoa Butter Extractor:

1.  Optimized Structural Design:

• Features an independent pressing chamber and end-face oil circuit design, resulting in a shorter oil path and higher oil extraction efficiency.
• The hydraulic system pressure reaches up to 45MPa, and the material pressure can reach 55MPa, ensuring high working pressure and more thorough solid-liquid separation. The cocoa cake's fat content can be reduced to 12%, yielding low-fat cocoa powder after crushing.

2. Upgraded Filtration Technology:

Utilizes a combined metal mesh filtration structure, eliminating the need for filter cloth, enabling automatic filtration, and reducing consumables and maintenance.

3. Intelligent Control System:

• Equipped with an intelligent PLC control system, enabling fully automatic operation of the entire process, including feeding, pressing, discharging, and material cutoff.
• Supports adjustable pressing cycles, with simple settings and operation.

Parameters of Automatic Cocoa Butter Extraction Machine
